Demo walkthrough

A guided tour of netbox-osp running against the live demo at http://192.168.1.137:8000/ (a small Perth-metro topology — 7 sites, 6 OSP cables, 3 splice closures, 1 fibre link). Same plugin you get from pip install netbox-osp, same NetBox 4.6 you already run.

1. Why this plugin exists

NetBox handles inside-plant cabling beautifully. The moment you push outside the building, gaps appear:

  • multi-tube armoured OSP cables with TIA-598-C buffer-tube colour codes
  • splice closures in pits with measured per-strand loss in dB
  • MPO/MTP trunks fanning out to LC cassettes across racks
  • end-to-end fibre links where you actually need to know whether the loss budget closes

netbox-osp is the plugin that fills those gaps — without requiring PostGIS, and without replacing anything NetBox core already does well.

2. Model the plant

OSP cables sit at the top of the model: site-to-site spans with type, fibre count, attenuation per km, GeoJSON route, and an internal arithmetic invariant (fibre_count == tube_count × fibres_per_tube enforced in clean()).

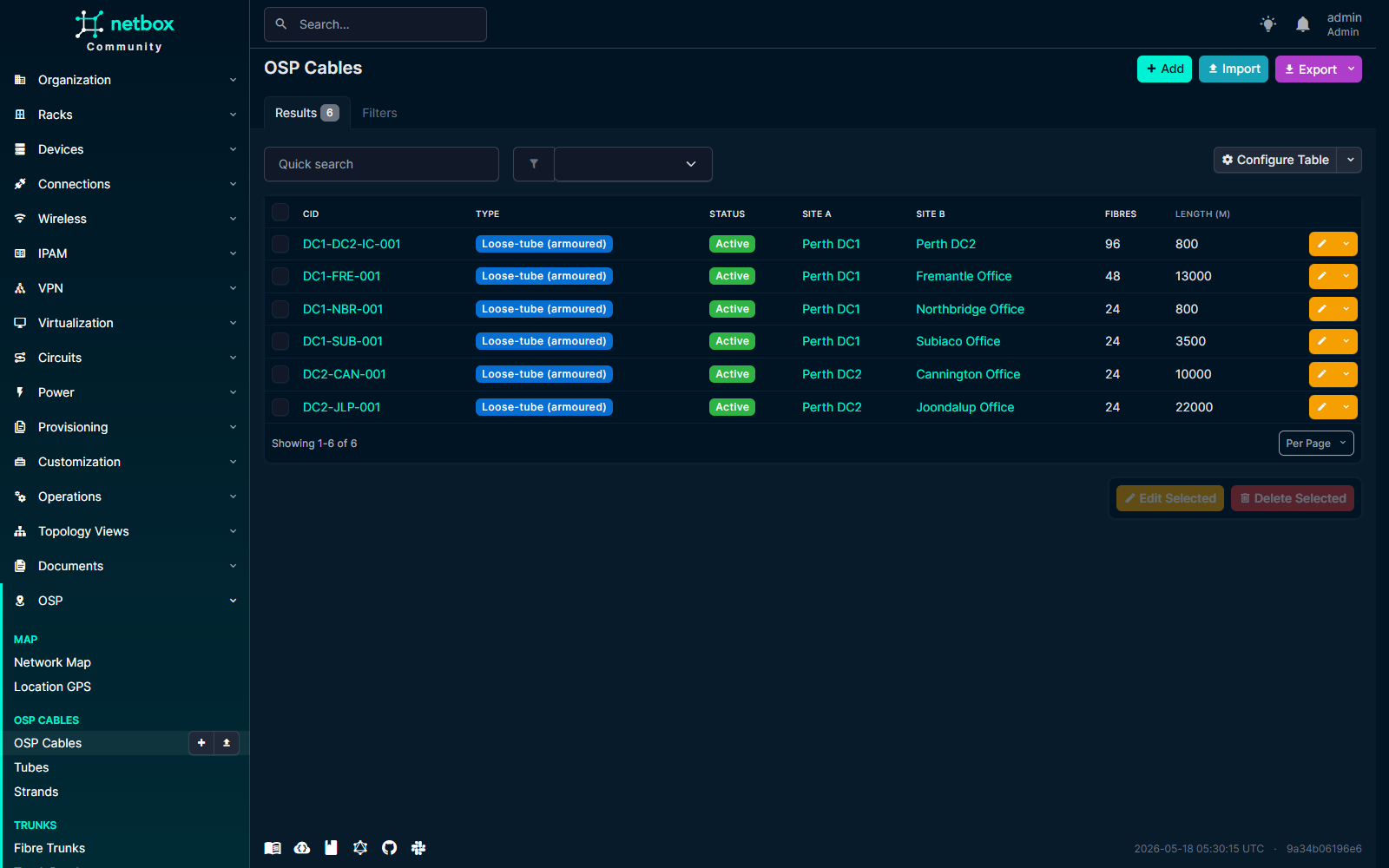

OSP cables list

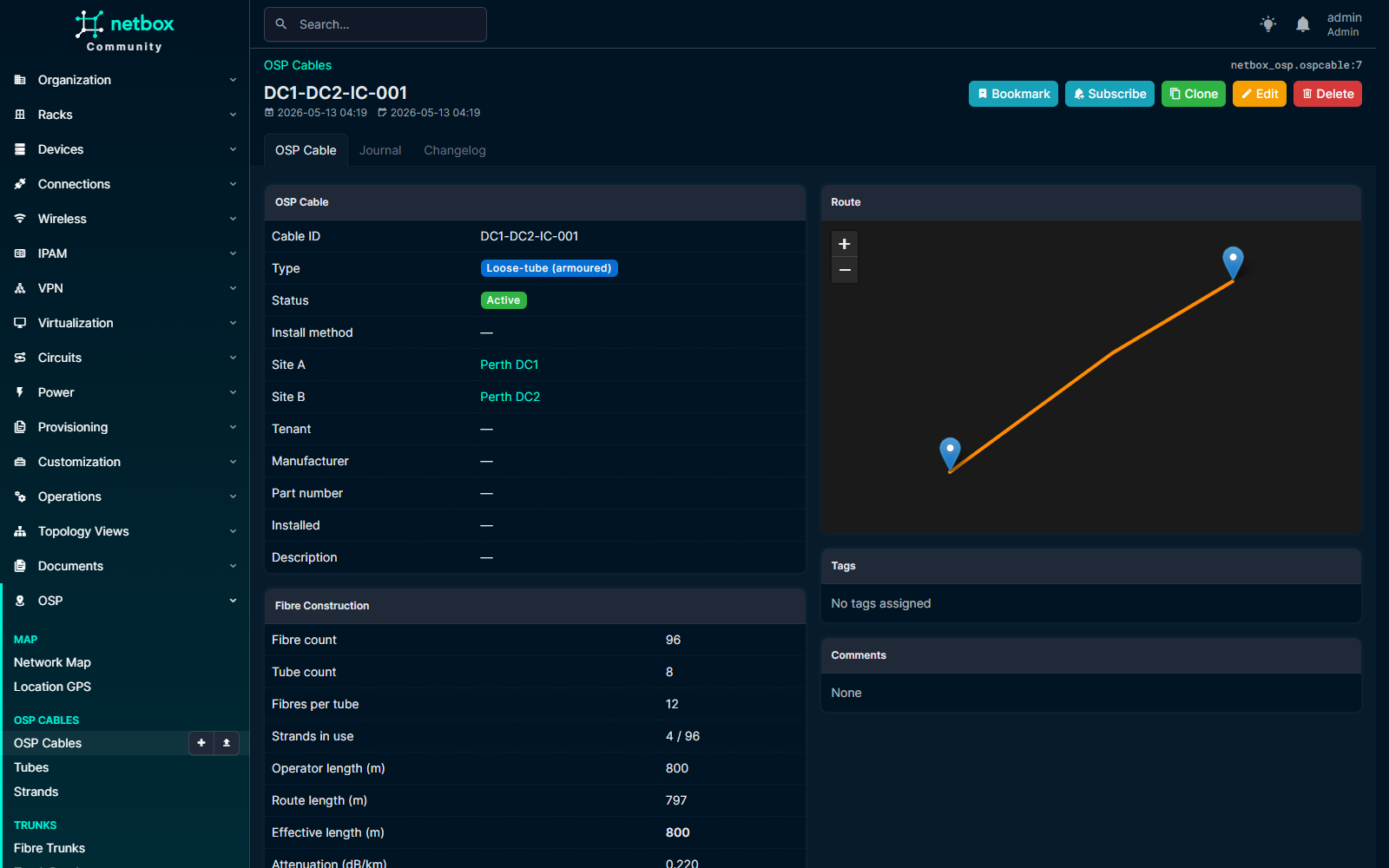

Drill into any cable and you see the buffer tubes, individual strands, attenuation, length, and the same plant-boundary validation that catches operator slips when re-routing on the map.

OSP cable detail

3. Plan your splices

Splice closures sit at sites with optional GeoJSON points (mini-map on the detail page), a capacity_splices count, and child trays that hold individual splices. Each splice records the joined strands plus measured loss in dB.

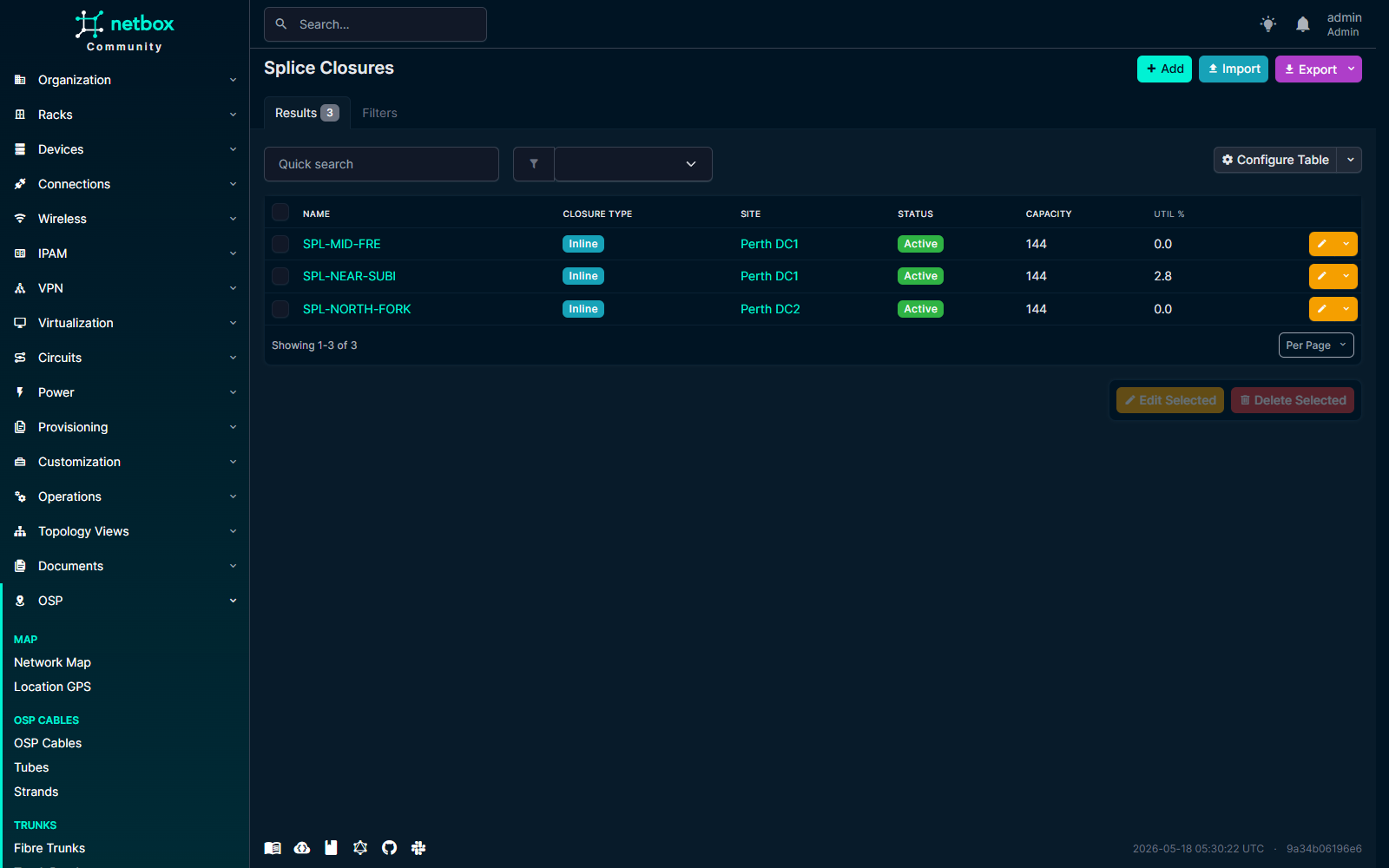

Splice closures list

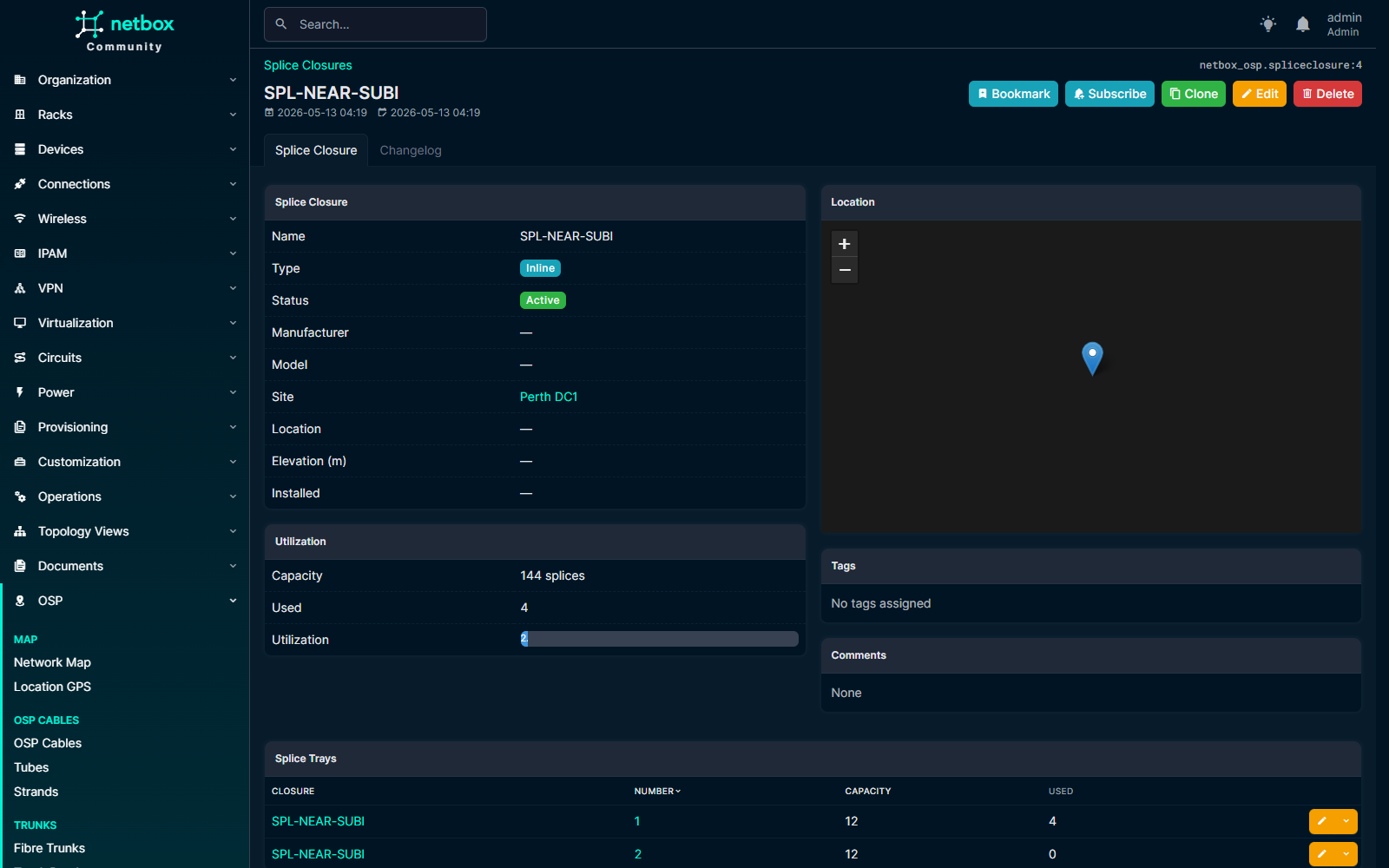

The closure detail shows utilisation against capacity, the location on its own Leaflet mini-map, and the per-tray rollup.

Splice closure detail

4. Compute the loss budget

Fibre links chain N strands through M splices into an end-to-end logical link, with a configurable target_loss_budget_db. The plugin computes strand attenuation × length + per-splice loss + per-connector loss, and bands the total against your budget.

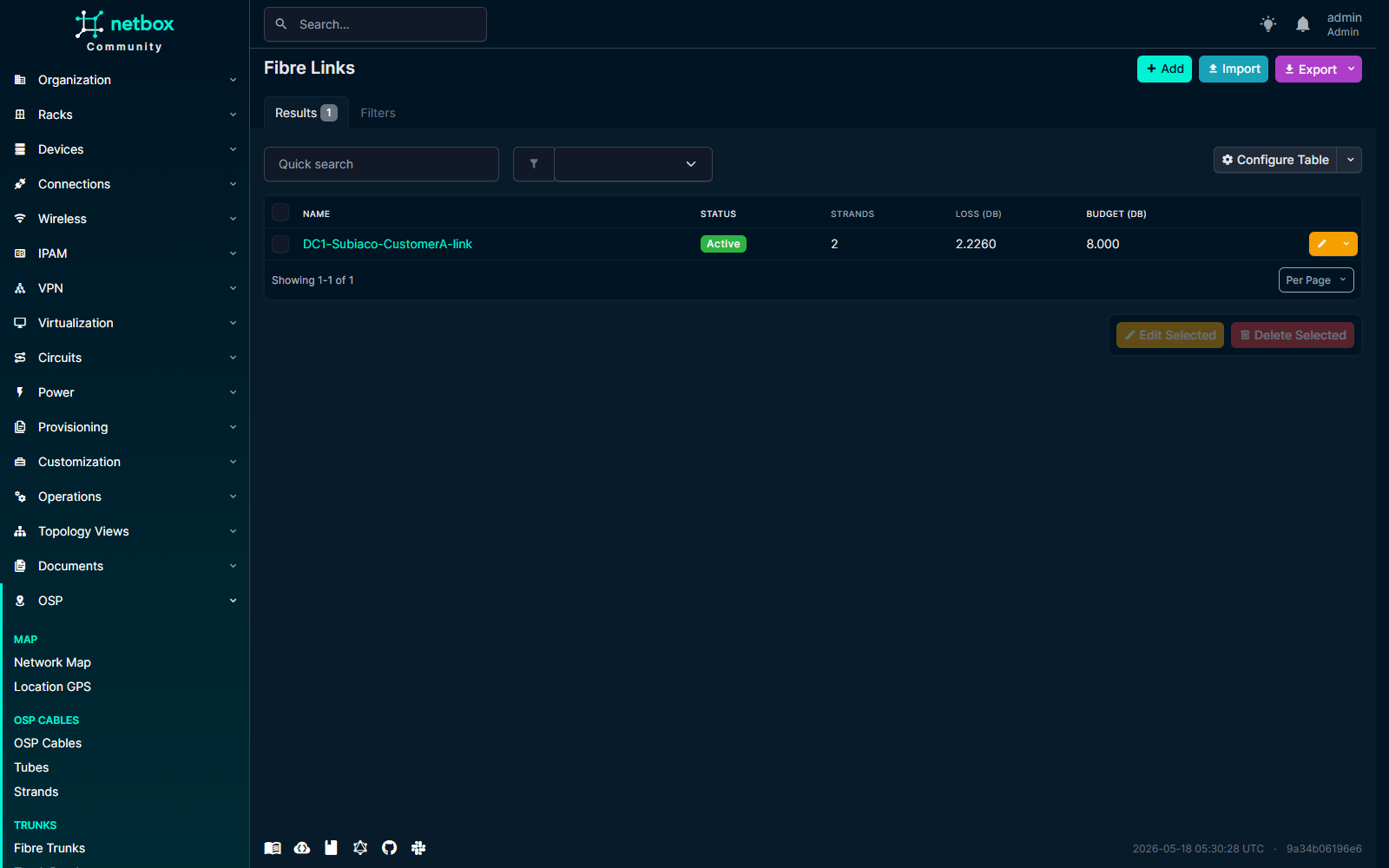

Fibre links list

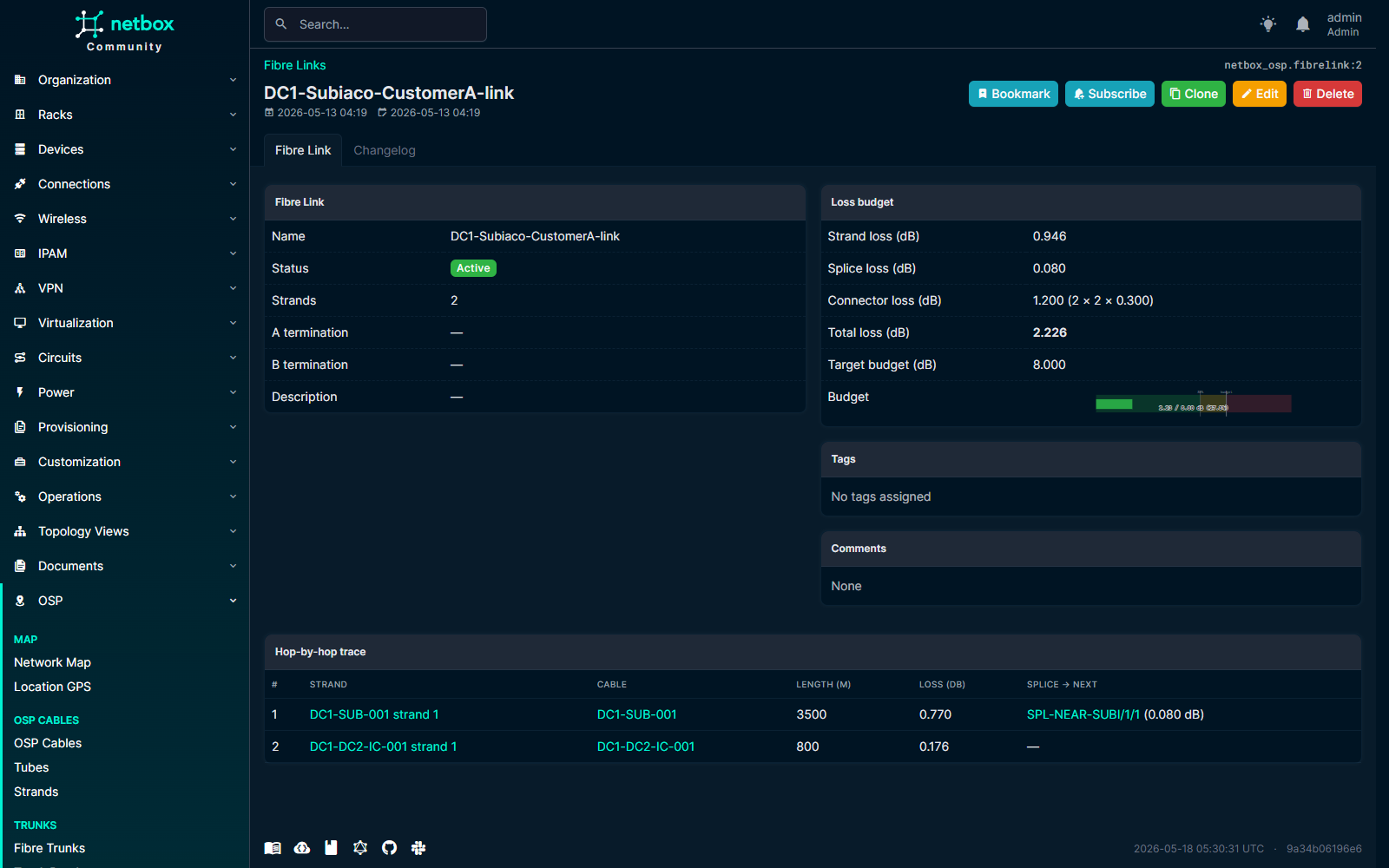

The link detail page shows the breakdown — strand loss, splice loss, connector loss, total dB used — plus an SVG gauge that turns yellow at 80 % and red at 100 % of target. The Hop-by-hop trace at the bottom of the page walks every contributor.

Fibre link detail with loss-budget gauge

5. Deploy MTP harnesses in one click

NetBox today can't natively express "one 24F MTP trunk → 12F breakout to rack A + 12F to rack B" as a single physical entity. netbox-osp adds FibreTrunk + TrunkBreakout that bridge to NetBox's native dcim.Cable, and ships a one-click deploy form that atomically creates:

  • the parent FibreTrunk row
  • N cassette dcim.Devices (auto-instantiated from a cassette device-type template — the plugin ships five of those too)
  • N dcim.Cables connecting the source patch-panel rear ports to each destination cassette
  • N TrunkBreakout rows binding each child cable to the trunk at the chosen fibre range

Operator fills one form, confirms a preview, commits. Replaces ~30 individual object writes with one transaction.

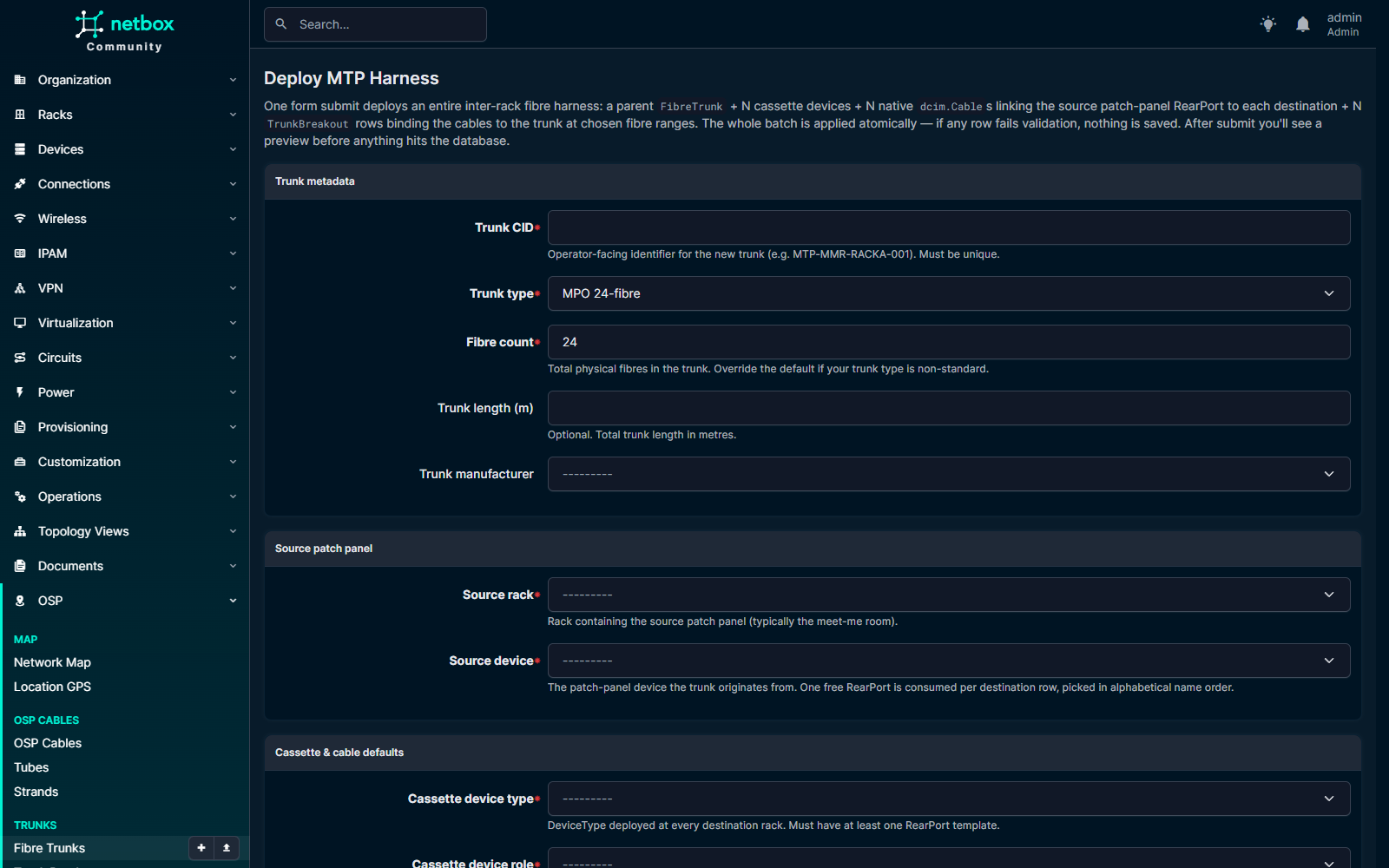

Deploy MTP Harness form

6. Trace any core, end to end

Pick any strand on any cable, any FrontPort, or any device Interface, click "Trace this core", and the plugin walks the path: cable terminations into NetBox's dcim.Cable.trace(), then jumps the splice graph in OSP-land, then back through more dcim terminations until it hits a device interface on the other side.

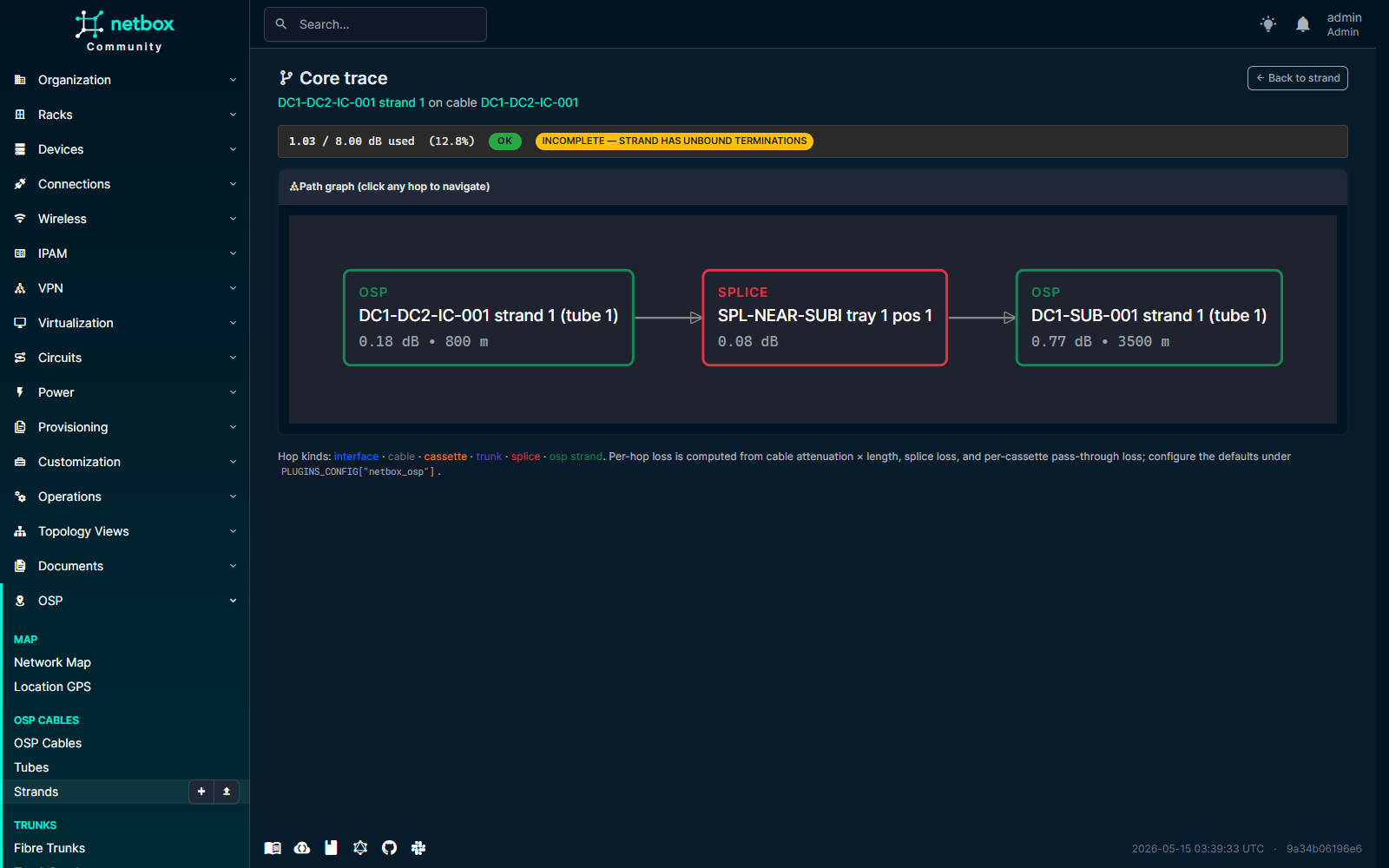

Every hop renders with its kind (interface, cable, cassette pass- through, trunk fibre, splice, OSP strand), its per-hop loss, and a clickable link to the underlying object. The summary band above the graph shows total dB used against the link's target, colour-coded.

Visual core tracer

The graph is rendered with dagre-d3 and ships fully vendored — no CDN dependency, no online tile servers, no PostGIS.

7. See the whole plant on the map

The full-screen plant map at /plugins/osp/map/ ties everything together: sites, OSP cable routes (drag-to-edit with leaflet-geoman), splice closures clustered at the right zoom level, and an optional overlay of per-Location GPS markers.

The base-layer switcher (top-right) cycles seven public providers (OSM, HOT OSM, CartoDB Positron + Dark Matter, OpenTopoMap, CyclOSM, Esri World Imagery) plus a bundled offline MBTiles bundle. After three tile errors in five seconds, the map auto-falls-back to offline — so the OT operator on an air-gapped network gets a working plant view without changing a setting.

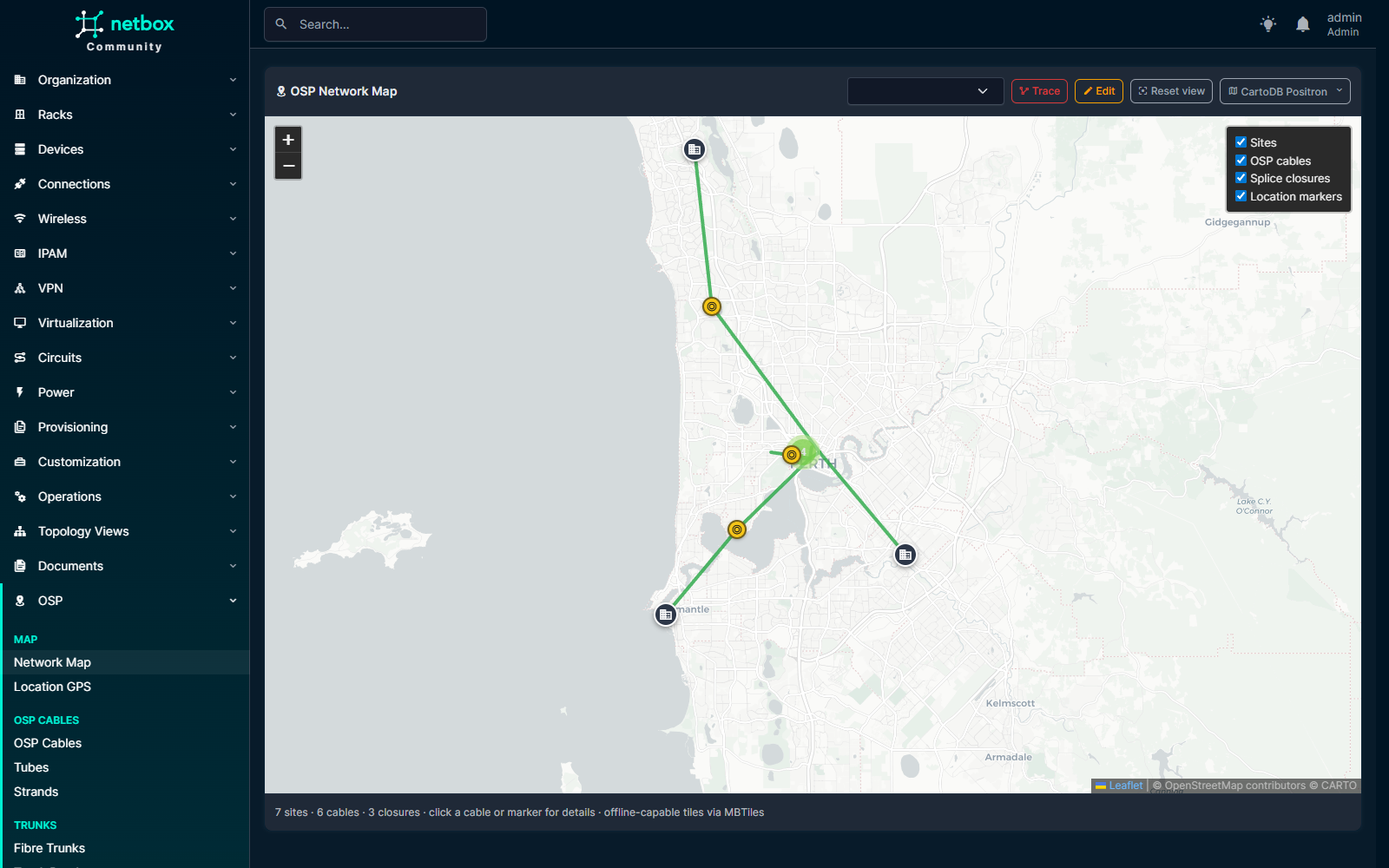

Full-screen network map

8. Install

pip install netbox-osp

Then enable the plugin in configuration/plugins.py:

PLUGINS = ["netbox_osp"]

and run:

python manage.py migrate
python manage.py collectstatic --no-input
python manage.py load_osp_cassettes   # optional — seeds 5 MPO/MTP cassettes

NetBox 4.6.x, Python 3.12 / 3.13, Postgres 17, Redis 7. PostGIS not required. Apache-2.0 licensed.
